VSYS VCM-MO748DS Fit Screen Size of 37″ to 120″ With the Weight Upto 45Kg For Commercial Display Standard Video Wall Mount
Key Feature Of VSYS VSVW02-46T Mount
-
➤ Pop‑out design for easy rear access.
-
➤ Durable steel construction with powder coat finish.
-
➤ Supports VESA up to 600×400 for 37″–70″ screens.
-
➤ Adjustable leveling ±3° for precise alignment.
-
➤ Anti-theft lock feature for security.
PRODUCT OVERVIEW
The Need for Secure and Reliable TV Mounts in Professional Environments

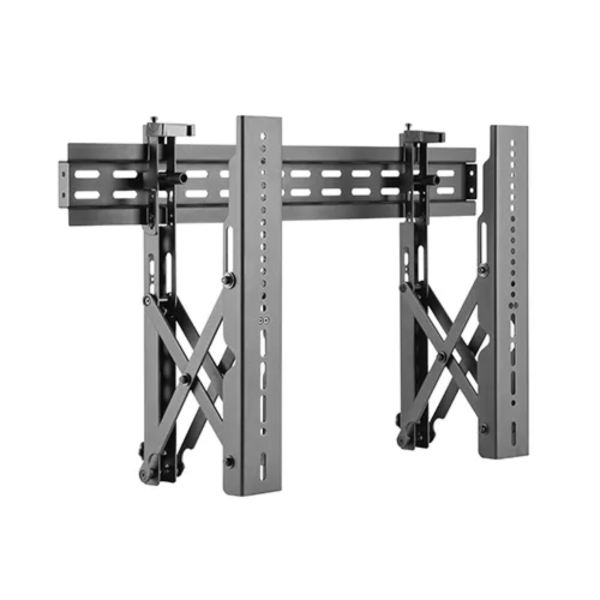

VSVW02-46T is a professional video wall mount designed to offer the ultimate in versatility and universal compatibility with load capacity of 45kg/99lbs and max. VESA 600×400 hole pattern. This mount extends out 202mm from wall by a press with pop-out function and places 60mm to wall when retracted with quick lock mechanism. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock). To customize multiple screen display solution, please use with connect plates.
The VSYS VSVW02-46T Pop-Out Push Pull Video Wall Mount is a premium solution engineered for 46” panels, providing a balance of strength, flexibility, and accessibility. Designed for professional applications, this mounting system is ideal for control rooms, airports, retail displays, boardrooms, and corporate lobbies.
The demand for digital signage and multi-display environments has surged across industries. Businesses use video walls not just for aesthetics but as dynamic communication tools that deliver immersive experiences, attract attention, and enhance engagement.
Key Benefits
-
Ultra-Slim Design: Keeps the display close to the wall for a modern, professional look.
-
Universal Compatibility: Works with most brands and models of flat-panel TVs and displays.
-
Quick Installation: Pre-assembled for efficient setup.
-
Exceptional Strength: Engineered to handle heavy-duty usage in professional environments.
-
Long-Term Reliability: Built for years of performance without the need for maintenance.
| Product Name | VSYS VCM-MO748DS Fit Screen Size of 37″ to 120″ With the Weight Upto 45Kg For Commercial Display Standard Video Wall Mount |
|---|---|
| Product Type | Video Wall Mount |
| Material | Steel |
| Metal Sheet Thickness | Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2.5mm cold-rolled sheet |
| Surface Finish | Powder Coating |
| Fit Screen Size | 37″-70″ |
| VESA Compatible | 200×200,400×200,300×300, 400×400,600×400 |
| Max. Mounting Hole | 600×400 |
| Weight Capacity | 45kg (99lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 68~215mm (2.7″~8.5″) |
| Installation method | Solid Wall |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Cable Management | No |
| Anti Theft | Yes |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
| Dimensions | 760x465x215mm (29.9″x18.3″x8.5″) |
| Manufacturer | VSYS |
| Color | Fine Texture Black |
