LG 98TR3DK 98'' 4K UHD IPS Touch Display 8ms Response Time Interactive Flat Panel

Actual Stock Can Be Confirmed After Placing the Order.
SKU
98TR3DK
$6,806 $6,482
Price Match Request
WhatsApp
Pay 4 interest-free payments of AED 421.00.Learn more

Key Features Of LG 98TR3DK

  • ➤ Internal Memory: 64GB (Storage) / 8GB (RAM)

  • ➤ Brightness (w/o Glass): 440 nit (Max.), 390 nit (Typ.)

  • ➤ Resolution: 3,840 × 2,160 (UHD)

  • ➤ Multi-Touch Point: 40 Points (Max.)

PRODUCT OVERVIEW

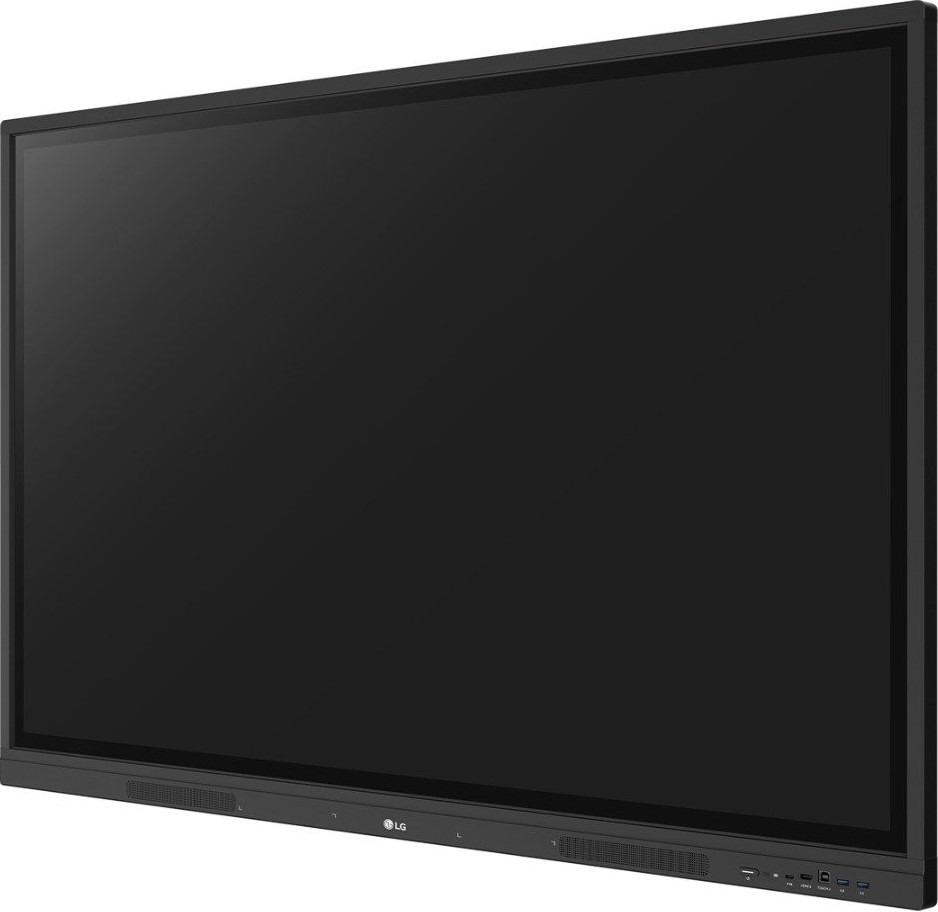

The LG 98TR3DK-BM CreateBoard is a 98-inch 4K UHD interactive display designed for educational and business environments. It features an IPS panel with a resolution of 3840x2160 pixels, delivering vibrant visuals and wide viewing angles. The display supports up to 40-point multi-touch input using infrared technology, providing a responsive and intuitive user experience. Running on Android OS 11, it comes equipped with 8GB RAM and 64GB internal storage, ensuring smooth performance for various applications. Built-in collaboration tools, such as LG CreateBoard Lab and LG CreateBoard Share, facilitate interactive learning and seamless content sharing among users.

The LG 98TR3DK-BM CreateBoard is a 98" 4K UHD interactive display designed for classrooms and meeting spaces. It features up to 40-point multi-touch support, runs on Android 11, and includes built-in tools for collaboration like LG CreateBoard Lab and Share.

With durable tempered glass and 16/7 operation support, it offers reliable performance. Connectivity options like HDMI, USB-C, Wi-Fi 6, and Bluetooth 5.0, plus built-in speakers, make it an all-in-one solution for engaging, interactive presentations.

A New Level of Classroom with LG CreateBoard

* All images on this page are for illustrative purposes only.

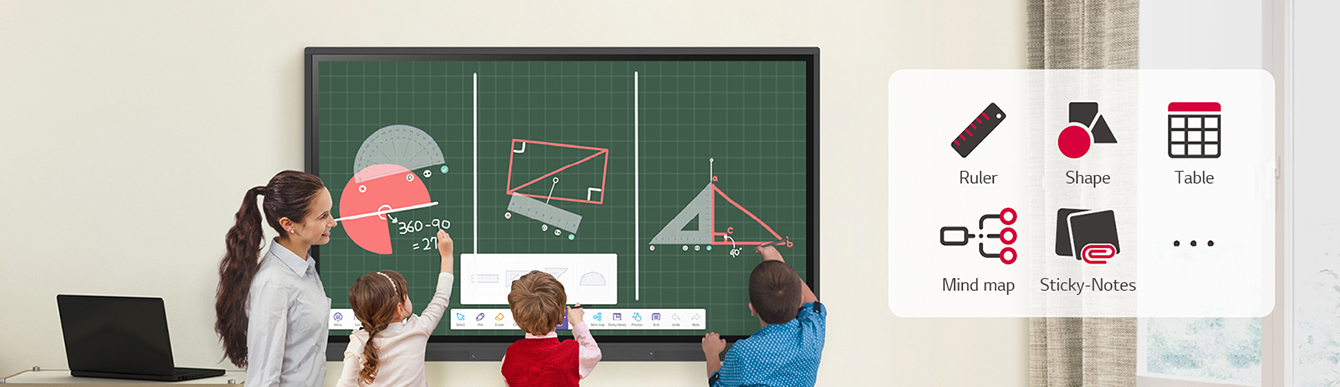

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.

Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

* A max of 32 points is recognized in the Android environment,

and a max of 40 points is detected in the Windows environment.

* Up to 10 points can be recognized in the writing app.

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality.

Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

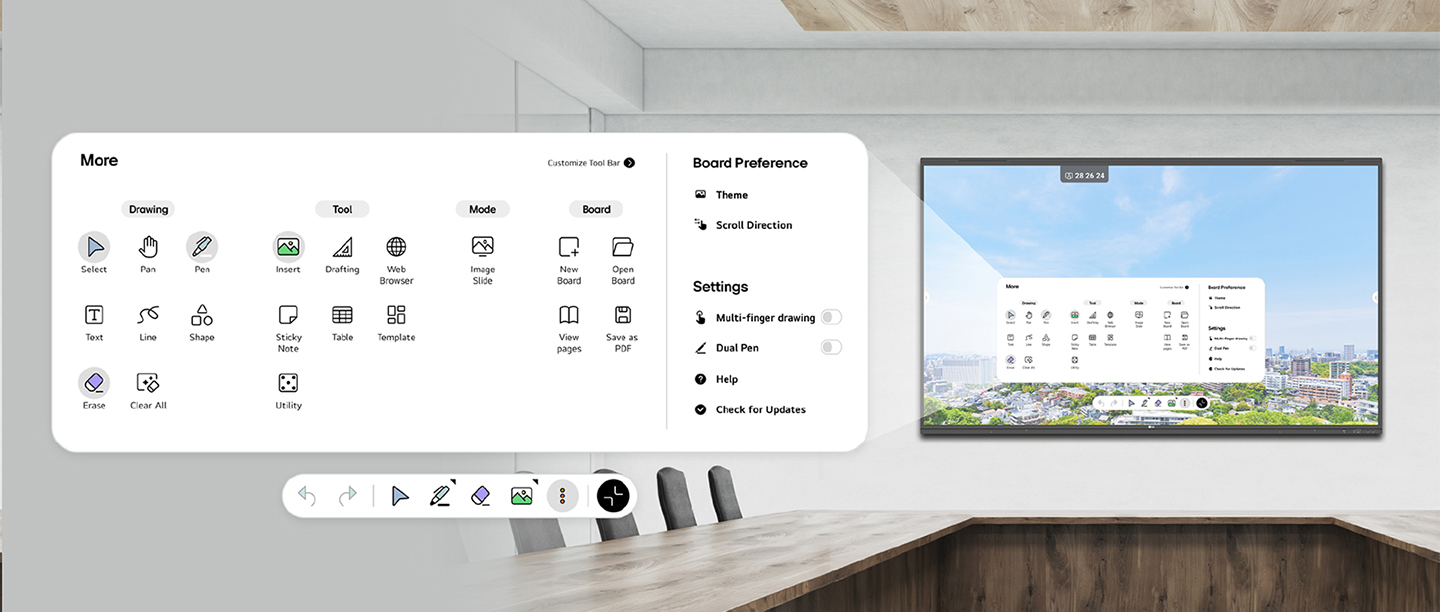

LG CreateBoard Lab

LG’s proprietary whiteboarding software

Tools for Fluid Collaboration

A variety of tools, such as a calculator, clock, and sticky note, are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency.

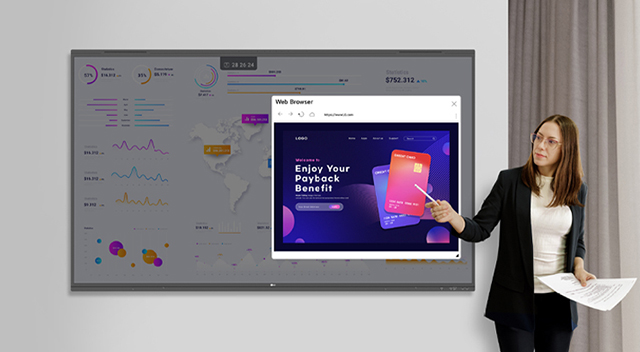

Web Browser

When you need a reference during a discussion, you can access various information in real time with the simple click of a web browser. The necessary information found on the internet can be easily dragged and dropped into the material you’re creating, enhancing the productivity of your meetings.



Attention Effect

By simply double-tapping the LG CreateBoard screen with 4-5 fingers, an attention sign will pop up with a sound. This feature makes it easy to capture the participants’ attention during moments when you need them to focus.

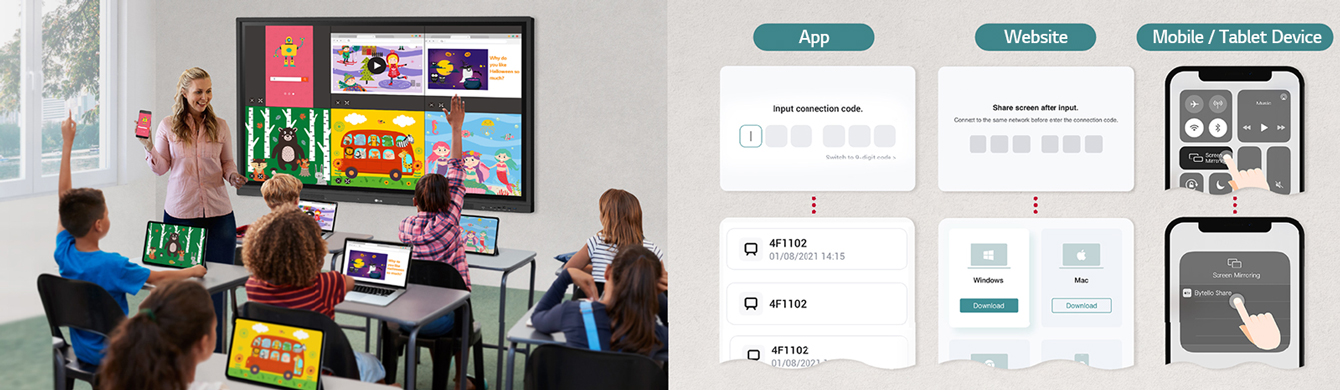

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

* LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

* 'LG ConnectedCare DMS' needs to be purchased separately.
* The availability of the 'LG ConnectedCare DMS' service differs by region, so please contact the LG sales representative in your region for more details.
* LG ConnectedCare DMS supports the TR3 Series as of now(plus more to come) under a cloud environment.



Remote-control / Scheduling

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

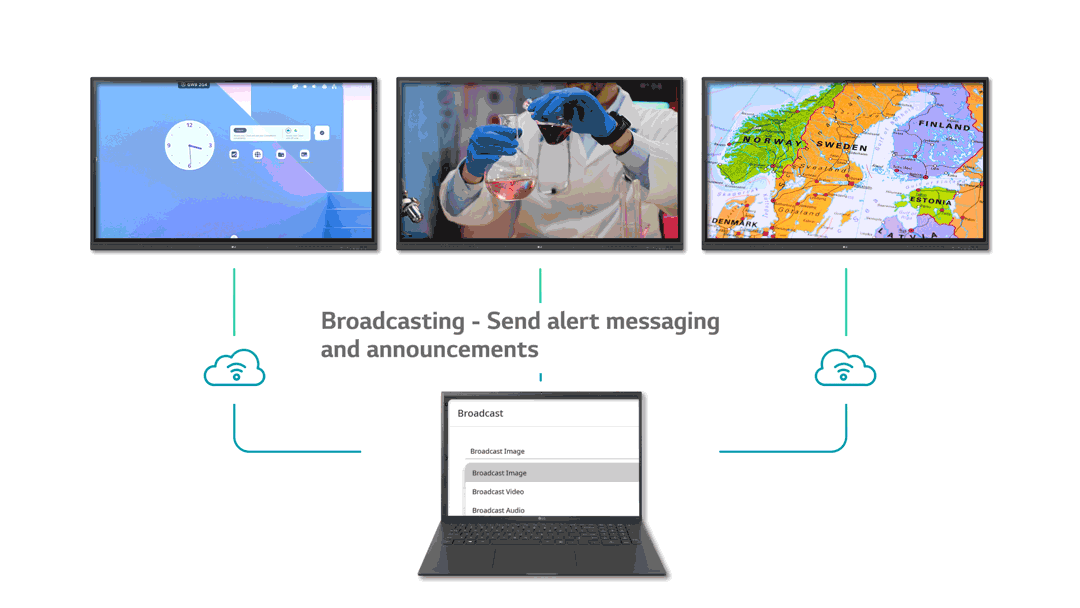

Broadcasting / Alert Messaging

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS.
In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.

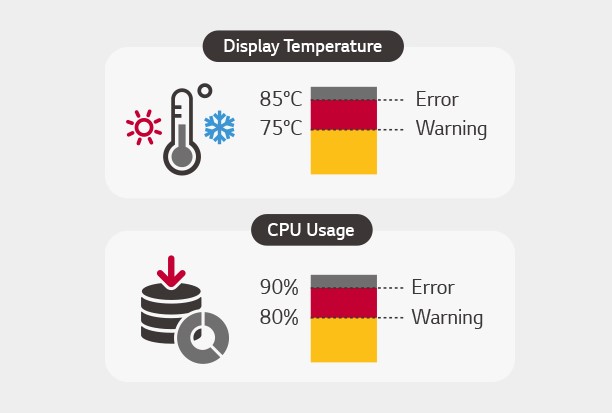

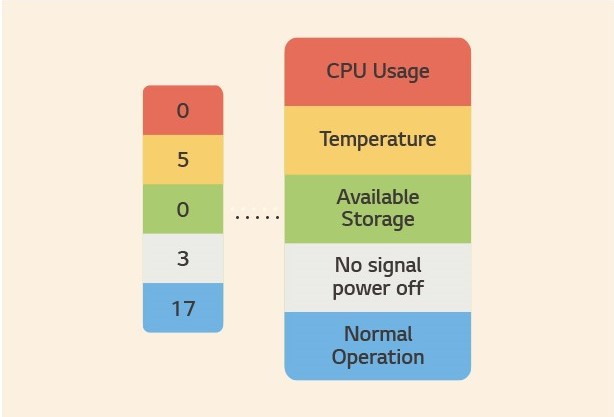

Threshold Settings

Users can set thresholds in eight categories, including display temperature, memory usage, signal, and receive warning or error notifications based on their threshold settings.

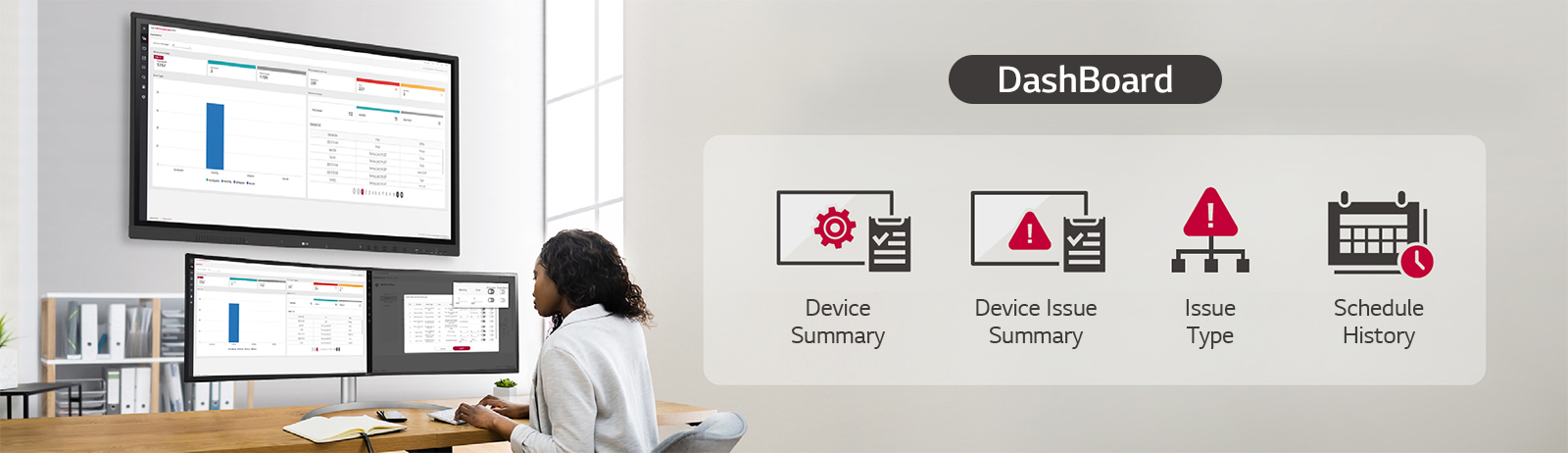

Monitoring & Fault Diagnosis

An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.





Issue Management

Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.



GOOGLE CERTIFICATION



Google Certification

LG CreateBoard has received Google certification, enabling users to seamlessly integrate with the Google ecosystem by connecting their Google accounts.

* Exceptions apply in countries without Google services.

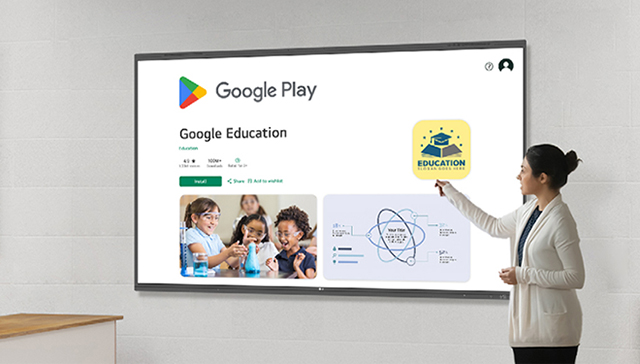

Google Play Store

Users have access to the Google Play Store, where they can download a wide range of applications, including education-related games, tools, and more for an expanded experience.

* Exceptions apply in countries without Google services

The LG CreateBoard can wirelessly connect to devices such as keyboards, mice, and speakers via Bluetooth.

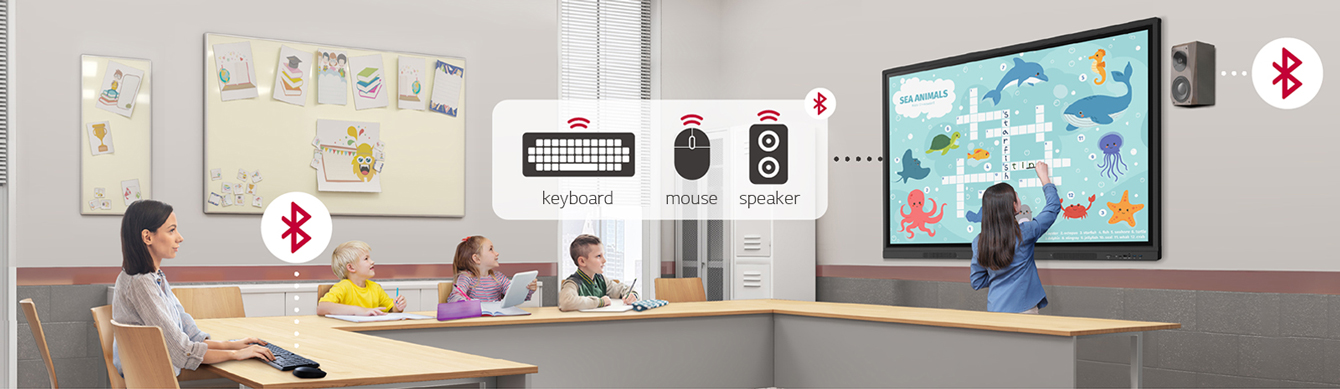

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

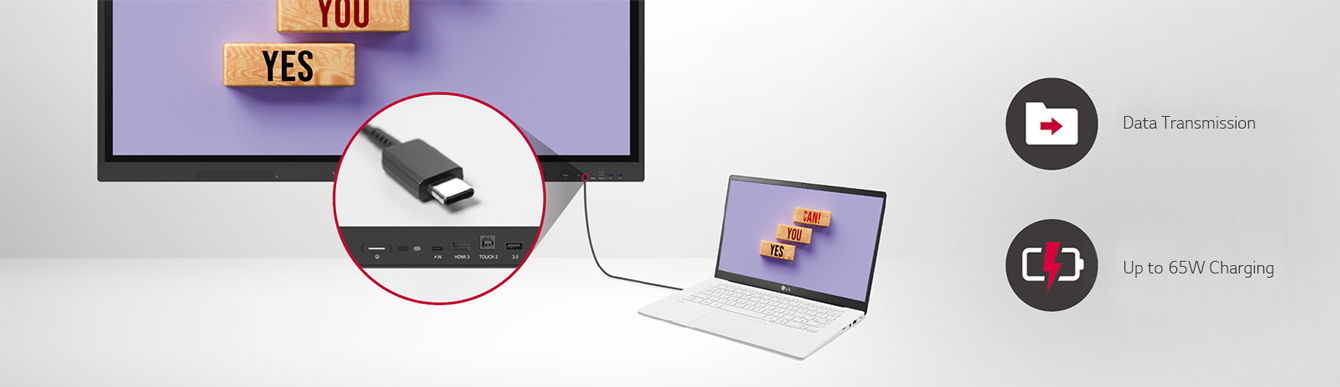

C-type Connection

USB-C connectivity simplifies connections
which enables charging and sending data simultaneously over just one single cable.

* USB Type-C cables are sold separately.

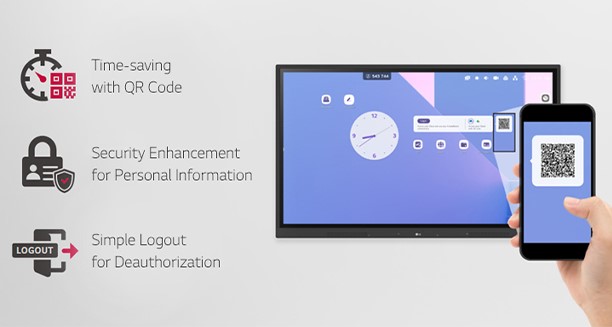

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.

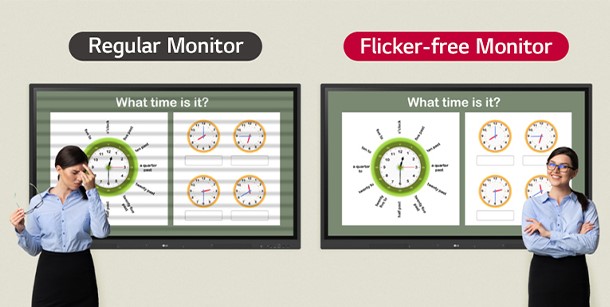

Advanced Eye-Care

LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor's backlight, users can use the device with more comfort, even when using it for a long time.

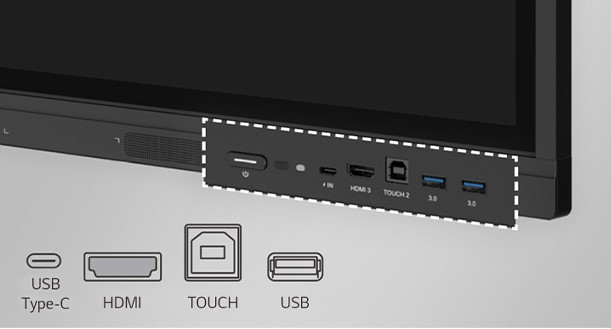

Front Connectivity Design

LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

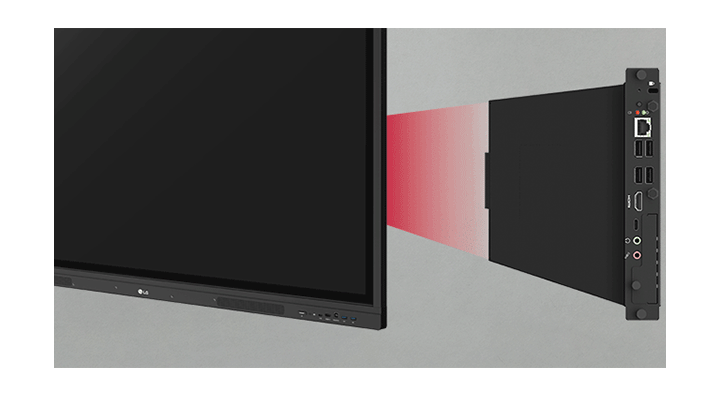

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount an OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

* OPS: Open Pluggable Specification
* The OPS Player for LG CreateBoard is sold separately.

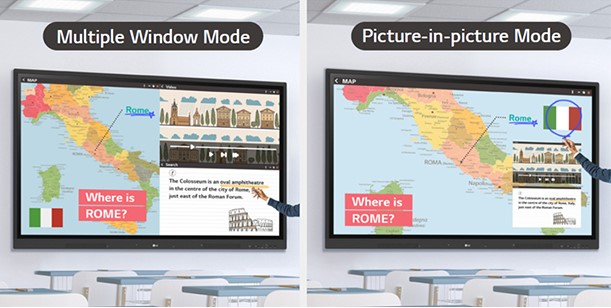

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

* Multi-window mode may not work for some apps.
* PIP mode is available for the external source screen.

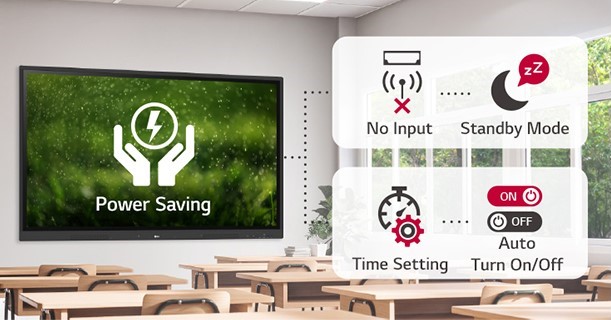

Power Saving

When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at a specific time or day set by the user, which contributes to saving energy.

SECURE FUNCTION




Screen Lock

Teachers can lock the screen using the Screen Lock function and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.


Secure Mode

LG CreateBoard supports Secure Mode, which disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.

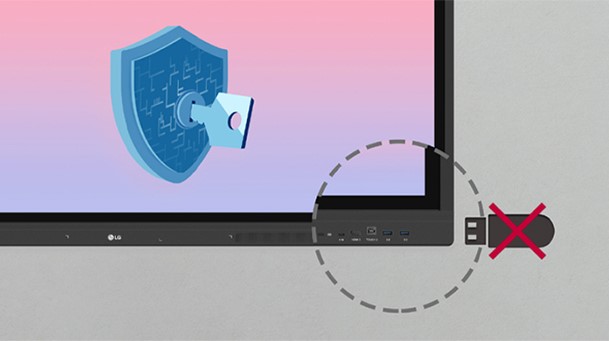

USB Lock Mode

USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.

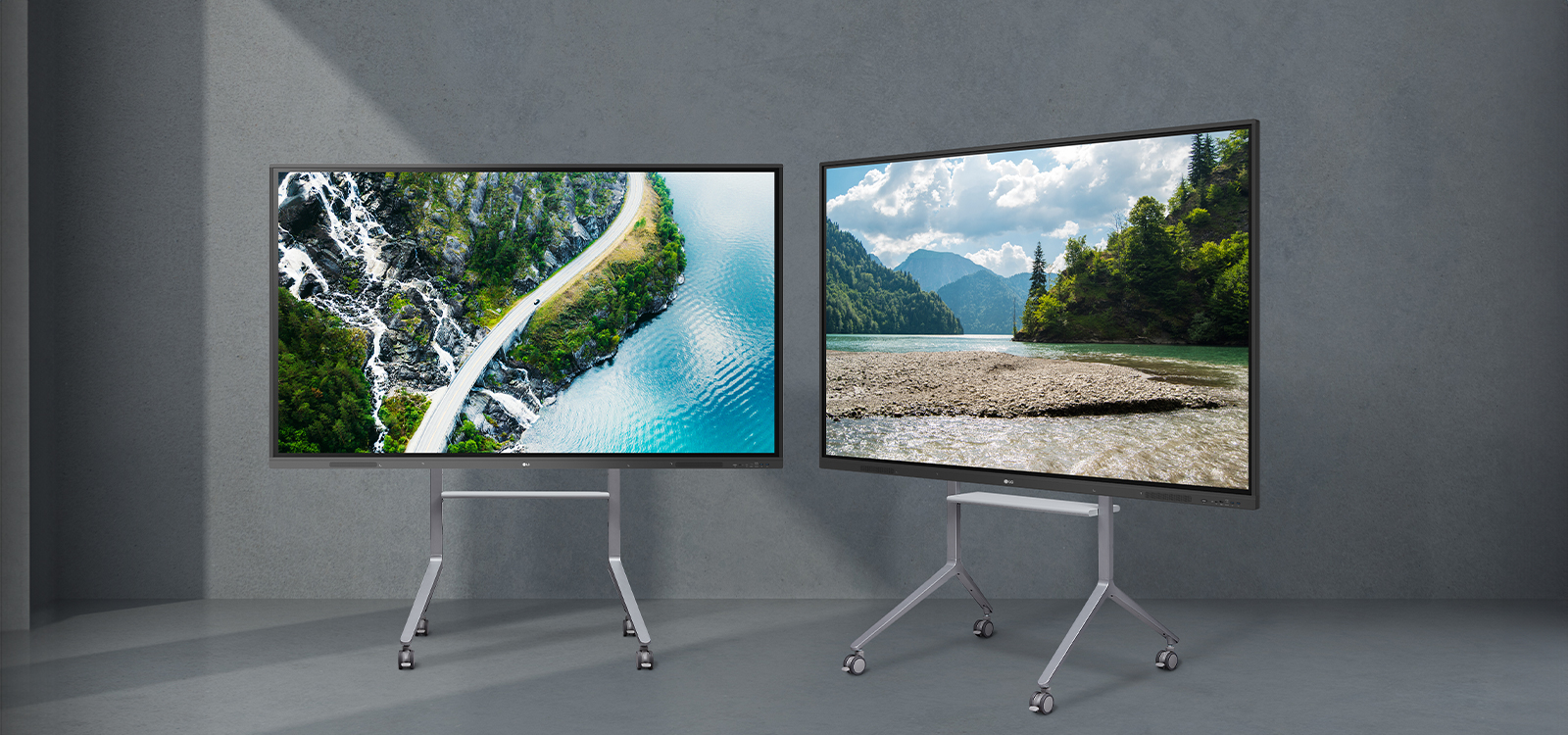

Easy Transportation with LG Universal Stand

The LG Createboard can be used anywhere indoors where it can be easily wheeled around. From classrooms to in-between spaces, it plays various roles according to each need such as lectures, group discussions, school announcements, and more.

* The stand is sold separately. (ST-860F)
** The product needs to be plugged into the appropriate power source to operate.
*** The image is created based on the 86” model.

More Information
Product Name LG 98TR3DK 98'' 4K UHD IPS Touch Display 8ms Response Time Interactive Flat Panel
Weight 103.60 Kg
Screen Size 98"
Screen Size 98 Inch
Backlight Direct
Aspect Ratio 16:9
Contrast Ratio 1200:1
Resolutions 3840 x 2160 (4K UHD)
Color depth 1.07 B (10 bit)
Response Time 8 ms
Visual angle 178 x 178 (H x V)
Mechanical Life 30,000 Hrs (L50, Min.), 50,000 Hrs (L30)
Input interface HDMI (3), RGB (VGA), Audio In, RS-232C, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A (1), USB Type-C
Output Interface HDMI Out, Audio Out, Optical SPDIF, Touch USB (2), RJ45 (LAN)
Panel Coatings IPS
Power Supply AC 100-240V~, 50/60Hz
Power Consumption Typ. 395W
Max. Power Consumption Max 610W
Operating Temperature 0 to 40°C
Operating Humidity 10% to 90%
Dimensions Carton Dimensions(W x H x D) (Box outer size) 2110×1283×225mm
Package Weight 133.2 kg
Packaging Dimensions 2406 x 1474 x 280 mm
Refresh Rate 60Hz
Resolution 3840x2160 (4K UHD)
GPU Mali G52MP2 GPU
Ram / Rom 8GB | 64GB
Operating System Quad Core A55
Led life time 30,000 Hrs (L50, Min.), 50,000 Hrs (L30)
Brightness 440 nit (Max.), 390 nit (Typ.)
Built-In Speakers Yes
Aspect Ratio 16:9
Bezel Width 30 / 27 / 27 / 45 mm
Contrast Ratio 1200:1
Connectivity Input HDMI (3, HDCP2.2), RGB (1, VGA), Audio In, RS232C IN, RJ45(LAN), USB3.0 Type A (4), USB2.0 Type A(1), USB Type-C(1, USB-PD, DP-Alt,)Output DP Out (HDMI Out), Audio Out (1, Optical 1(SPDIF)), Touch USB (2), RJ45(LAN)
Manufacturer LG
Color Black
Country of Origin South Korea
