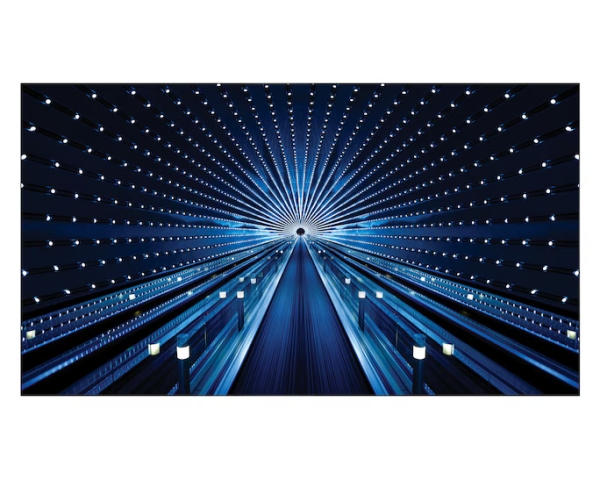

A Breakthrough in LED Display Design

The Samsung The Wall All‑in‑One (model LH0161ABMHS) represents a new paradigm in premium LED display solutions, conceived for corporate boardrooms, luxury showrooms, control centers, and high‑end residential applications. It elevates visual communication by merging cutting‑edge micro LED technology with a simplified deployment process, delivering dramatic visuals without the complexity historically associated with large LED walls.

Unmatched Visual Depth with Black Seal Technology

At the core of The Wall All‑in‑One experience is Black Seal Technology, which suppresses ambient light reflection and supports deeper, more uniform blacks across the display surface. This results in compelling contrast and visual depth that accentuates fine detail in dark imagery and dramatically enhances overall picture fidelity — a crucial advantage for rendering cinematic content or control‑room dashboards with high precision.

Vibrant and Accurate Colours with Ultra Chroma

Complementing its deep blacks, the display features Ultra Chroma Technology. This innovation narrows the electromagnetic wavelengths of RGB output, producing colours that are significantly purer and more accurate than conventional LED displays. The result is a broader colour gamut and richer visuals that contribute to true‑to‑life content reproduction — particularly impactful for branding, retail displays, and immersive visual experiences.

Simplified Installation with Pre‑assembled Modules

The Wall All‑in‑One radically rethinks installation efficiency. Instead of configuring numerous individual LED cabinets, Samsung delivers pre‑assembled modules and integrated background plates that dramatically reduce setup time and logistical complexity. According to Samsung’s internal testing, a full installation can often be completed in as little as two hours with just two people, even for larger screen sizes.

Integrated Control for Faster Deployment

Traditional LED walls require external control and configuration hardware — a process that can be time‑consuming and technically demanding. The Wall All‑in‑One eliminates this barrier with a built‑in control box, which is integrated directly into the display itself. This design choice streamlines setup and calibration, enabling businesses to deploy the display more quickly and with fewer technical dependencies.

Rich Image Processing and AI‑Assisted Optimisation

Samsung equips this display with the Neural Quantum Processor 4K, an AI‑driven engine that continuously analyzes incoming content and dynamically enhances contrast, reduces noise and optimises overall image quality up to 4K resolution. Together with advanced 20‑bit colour processing and linear grayscale mapping, the display produces smooth, natural tonal transitions and precise shadow details with exceptional depth.

High Dynamic Range and Motion Performance

The Wall All‑in‑One supports sophisticated HDR technologies, including HDR10+ and LED HDR, broadening its peak brightness and contrast capabilities for more dynamic visuals. Coupled with MICRO Motion, the display can take standard 60 Hz video inputs and internally optimise motion performance, resulting in smoother on‑screen movement for fast‑paced video content.

Wide Viewing Angles and Visual Consistency

The display is built to be viewed by large audiences, offering wide horizontal and vertical viewing angles (approximately 170°/155°). This ensures consistent colour and brightness from almost any position in the room — crucial for collaborative meetings, customer engagement zones, or command centre environments where many viewers may be positioned off‑axis.

All‑Inclusive Components for a Complete Solution

The Wall All‑in‑One integrates essential connectivity and media handling features — including HDMI, DisplayPort, USB, RS‑232, LAN, and audio outputs — to ensure seamless integration with external sources and control systems. Built‑in speakers provide adequate audio reinforcement for presentations and multimedia, removing the need to source third‑party sound systems.

Designed for Professional and High‑Impact Use

With peak brightness reaching up to 1600 nits and a high contrast ratio of ~24,000:1, this LED display is engineered for long‑term use in demanding professional environments. The Micro LED diodes offer an extended operational life (up to ~150,000 hours), ensuring that the investment remains reliable across years of usage, even under continuous operation.

Product Features

Display & Visual Quality

• 146‑inch 4K UHD (3840 × 2160) direct‑view LED panel

• Black Seal Technology for deeper black levels and contrast

• Ultra Chroma Technology for enhanced colour purity

• Wide viewing angles: ~170°/155°

• High contrast ratio (~24,000:1) and up to 1600 nits peak brightness

• HDR support: HDR10+, LED HDR, and AI picture optimisation

Technology & Processing

• 20‑bit colour processing and linear grayscale mapping

• Neural Quantum Processor 4K for automatic visual enhancements

• MICRO Motion motion optimisation (up to 120 Hz input handling)

Installation & Integration

• Pre‑assembled modules for rapid installation

• Built‑in control box and all inclusive components (brackets, speakers)

• Simplified deployment with no external controller configuration

Connectivity & Features

• Supports HDMI, DisplayPort, USB, RS‑232, LAN, audio interfaces

• Integrated audio (10 W × 2ch)

• Operating environment: 0 °C–40 °C, 10%–80% RH

• Operating system (Tizen 6.5) with signage management support
