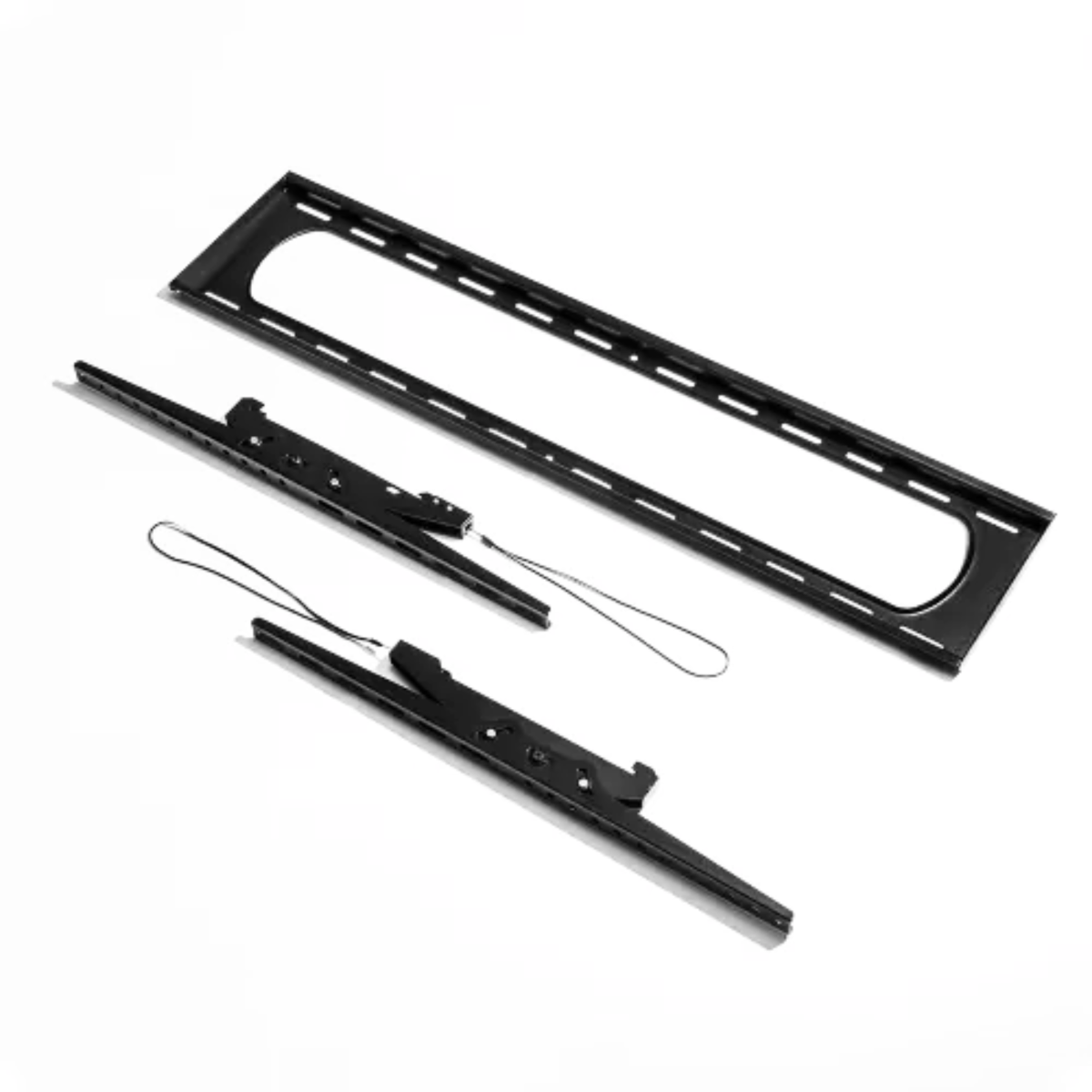

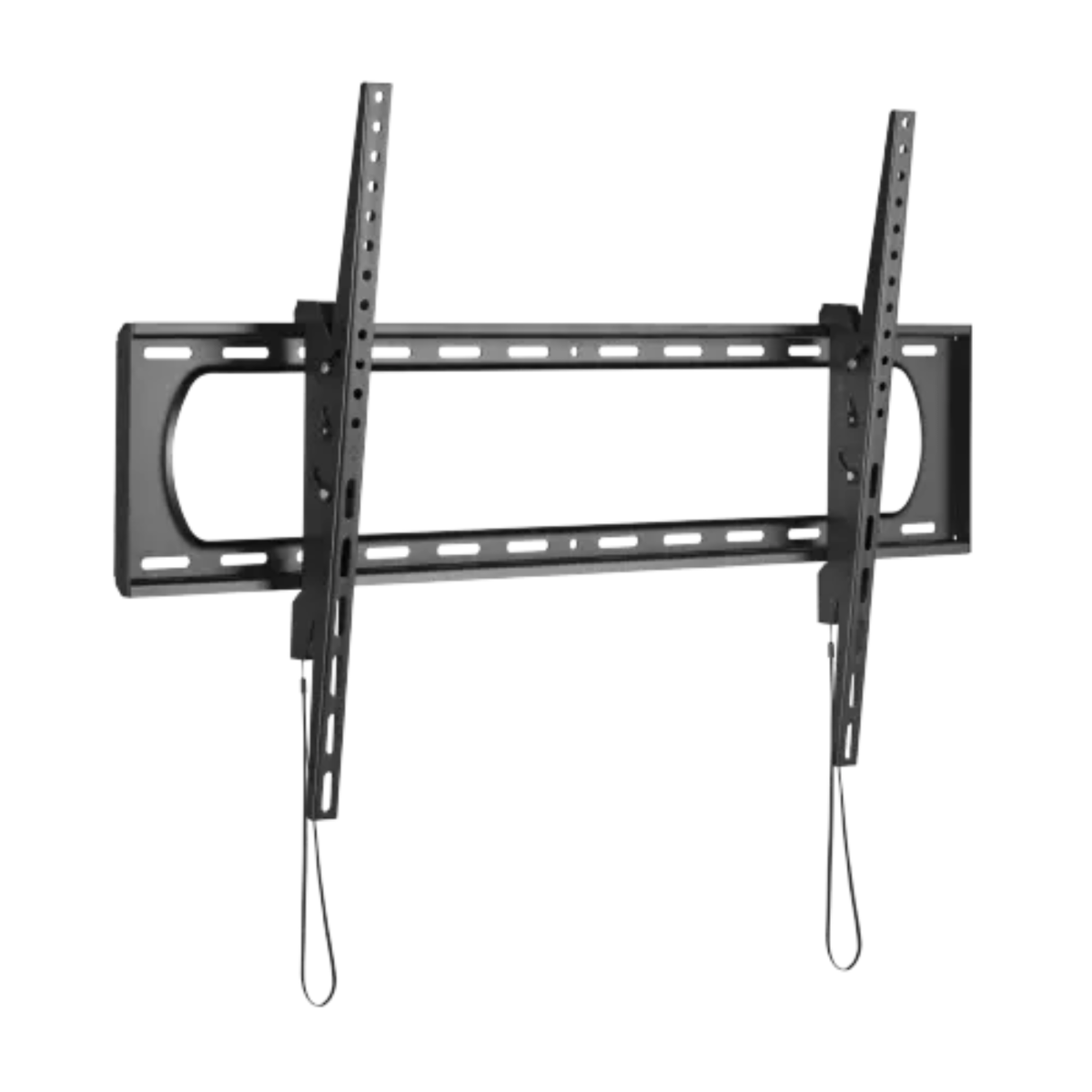

VSYS VS01A-69T Fit Screen Size of 60″ to 120″ With The Weight Upto 120Kg Affordable Heavy-Duty Tilt TV Wall Mount
Key Feature Of VSYS VS01A-69T Mount
-
➤ Supports TVs up to 120 kg (60″–120″)
-
➤ Heavy-duty 2 mm steel construction
-
➤ Wide VESA compatibility (50×50–900×600)
-
➤ Tilt range of +10° to –10°
-
➤ Quick-release spring lock for easy removal
PRODUCT OVERVIEW
The Need for Secure and Reliable TV Mounts in Professional Environments
To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the VS01A-69T Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg/264lbs to firmly hold 60’’~120’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install.
The VSYS VS01A‑69T Heavy-Duty Tilt TV Wall Mount is designed to support large TVs ranging from 60″ to 120″, with a maximum load capacity of 120 kg. Its robust 2 mm steel construction ensures durability and stability, while the wide VESA compatibility (50×50 to 900×600) makes it suitable for a variety of TV models.
For enhanced viewing flexibility, the mount offers a tilt range of +10° to –10°, allowing you to adjust the angle for optimal comfort. Additionally, the quick-release spring lock system makes installing or removing your TV fast, secure, and hassle-free.
Key Benefits
-
Ultra-Slim Design: Keeps the display close to the wall for a modern, professional look.
-
Universal Compatibility: Works with most brands and models of flat-panel TVs and displays.
-
Quick Installation: Pre-assembled for efficient setup.
-
Exceptional Strength: Engineered to handle heavy-duty usage in professional environments.
-
Long-Term Reliability: Built for years of performance without the need for maintenance.
| Product Name | VSYS VS01A-69T Fit Screen Size of 60″ to 120″ With The Weight Upto 120Kg Affordable Heavy-Duty Tilt TV Wall Mount |
|---|---|
| Product Type | Tilt TV Wall Mount |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079″ cold-rolled sheet,Wall Plate THK=0.079″ cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Fit Screen Size | 60″-120″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50,75×75,100×100,100×150, 150×100,100×200,200×100,150×150, 200×200,200×300,300×200, 200×400,400×200,300×300, 300×400,400×300,600×200, 400×400,600×300, 400×600,600×400,700×400, 800×400,600×600,800×500, 800×600,900×600 |
| Max. Mounting Hole | 965x602mm |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 80mm (3.1″) |
| Installation method | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti Theft | No |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
| Dimensions | 80x1005x602mm (3.1″x39.6″x23.7″) |
| Manufacturer | VSYS |
| Color | Fine Texture Black |
