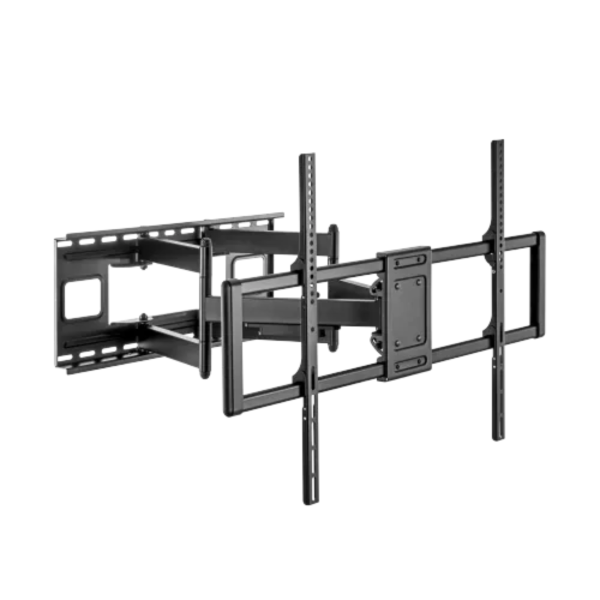

VSYS VS02D-696 Fit Screen Size of 60″ to 120″ With the Weight Upto 120Kg For Large Display Heavy Duty Full Motion TV Mount
- Choose the product you want and add it to your cart.
- Proceed to checkout and fill out a short form.
- Click on "Tap Payment," and a secure window will pop up.
- Select Tabby as your payment option within the pop-up.
- Enter your mobile number and receive an OTP code.
- Complete additional verification, such as providing your EID & other details.
- Enter your Full Name and perform ID Verification.
- Finally, press "Buy Now" to complete the purchase.

- Choose the product you want and add it to your cart.
- Proceed to checkout and fill out a short form.
- Click on "Tap Payment," and a secure window will pop up.
- Select Tamara as your payment option within the pop-up.
- Enter your mobile number and receive an OTP code.
- Complete additional verification, such as providing your EID & other details.
- Enter your Full Name and perform ID Verification.
- Finally, press "Buy Now" to complete the purchase.
Key Feature Of VSYS VS02D-696 Mount
-
➤ Supports 55″–100″ TVs up to 100 kg.
-
➤ Compatible with VESA patterns up to 800×600 mm.
-
➤ Full-motion dual-arm: extends 700 mm, retracts 90 mm.
-
➤ Tilt ±10° and swivel ±60° for optimal viewing.
-
➤ Integrated cable management for a clean setup.
PRODUCT OVERVIEW
The Need for Secure and Reliable TV Mounts in Professional Environments
VS02D-696 Heavy-duty arms provide strong support for larger and heavier TVs up to 120kg, it basically holds all types of TVs from 60” to 120”. TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

Enter the VSYS VS02D-696 Heavy-Duty Full-Motion TV Mount, a premium-grade solution engineered to provide unmatched flexibility, strength, and viewing comfort for large displays. Designed to handle screens ranging from 55 inches to 100 inches with a maximum load capacity of 100 kg, this dual-arm articulating mount combines industrial-grade performance with sleek design aesthetics, making it ideal for corporate, educational, and hospitality environments.
In this comprehensive guide, we’ll explore why the VS02D-696 full motion TV mount UAE is one of the most reliable and versatile large display mounts available. We’ll discuss its engineering features, installation benefits, and how it empowers AV contractors to deliver world-class installations across industries.

Key Benefits
-
Ultra-Slim Design: Keeps the display close to the wall for a modern, professional look.
-
Universal Compatibility: Works with most brands and models of flat-panel TVs and displays.
-
Quick Installation: Pre-assembled for efficient setup.
-
Exceptional Strength: Engineered to handle heavy-duty usage in professional environments.
-
Long-Term Reliability: Built for years of performance without the need for maintenance.
| Product Name | VSYS VS02D-696 Fit Screen Size of 60″ to 120″ With the Weight Upto 120Kg For Large Display Heavy Duty Full Motion TV Mount |
|---|---|
| Product Type | Full-motion TV Wall Mount |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079″ cold-rolled sheet,VESA Panel THK=0.079″ cold-rolled sheet,Wall Plate THK=0.12″ pickling sheet) |
| Surface Finish | Powder Coating |
| Fit Screen Size | 60″-120″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 200×200,300×200,400×200, 300×300,400×300,400×400, 600×400,800×400,800×600, 900×600 |
| Max. Mounting Hole | 910×610 |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 75~703mm (3″~27.7″) |
| Installation method | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Accessory Kit Package | Compartment Polybag |
| Dimensions | 703x1010x630mm (27.7″x39.8″x24.8″) |
| Manufacturer | VSYS |
| Color | Fine Texture Black |
